358 High Security Welded Mesh Fencing
358 welded mesh is a high-security, anti-climb fencing system commonly used in correctional facilities, infrastructure sites, and industrial zones. 358 mesh offers a low visual profile while delivering outstanding perimeter protection. It is constructed from 4mm diameter wire with a mesh aperture of 71mm x 9mm—too narrow for fingers or tools to penetrate.
What is 358 Welded Mesh?
The term "358" refers to the mesh's imperial measurements: 3-inch spacing between vertical wires, 0.5-inch spacing between horizontal wires, and 8-gauge wire (4mm diameter). It is manufactured using high-tensile zinc/aluminium coated steel and provides exceptional resistance to climbing and cutting tools.
- Mesh size: 71mm x 9mm
- Wire diameter: 4.00mm
- Tensile strength: 560 MPA
- Zinc aluminium coating: min 260g/m², avg 300g/m²
- Weld shear strength exceeds AS2423-2002
-
Why Choose 358 for Security?

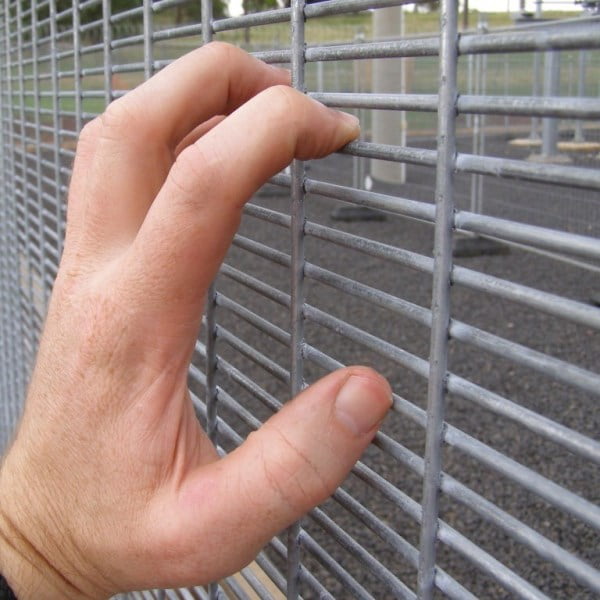

- Anti-climb and anti-cut design
- Minimal visual obstruction — ideal for CCTV
- Long lifespan with corrosion-resistant coating
- Conforms to AS/NZS4534 and AS2423-2002
-
Applications for 358 Mesh
- Prisons and correctional centres

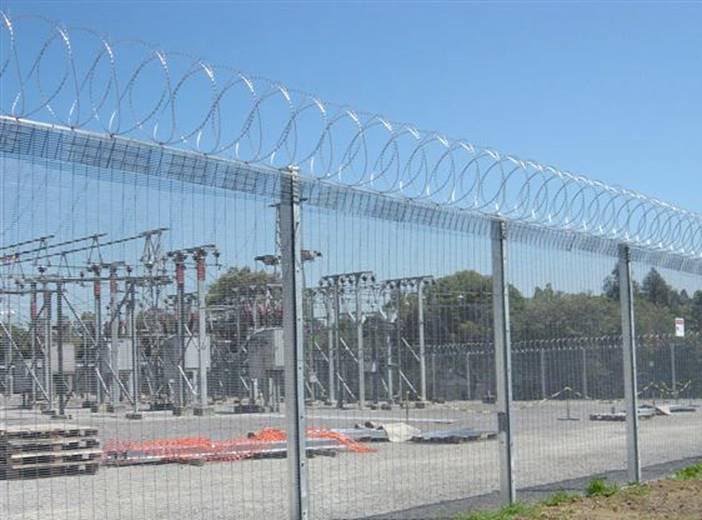

- Substations and energy infrastructure
- Airports and transport facilities
- Bridge and walkway anti-climb screening
- Water treatment and utility fencing
- Machine guards and balustrades
- Psychiatric and medical facilities
- Secure factory and warehouse perimeters
-
Finish Options
- Hot-dip galvanized
- Powder coated in a range of colours
The mesh maintains visibility while providing physical security. Powder-coated colours can be matched to the environment for aesthetic and functional integration.
-

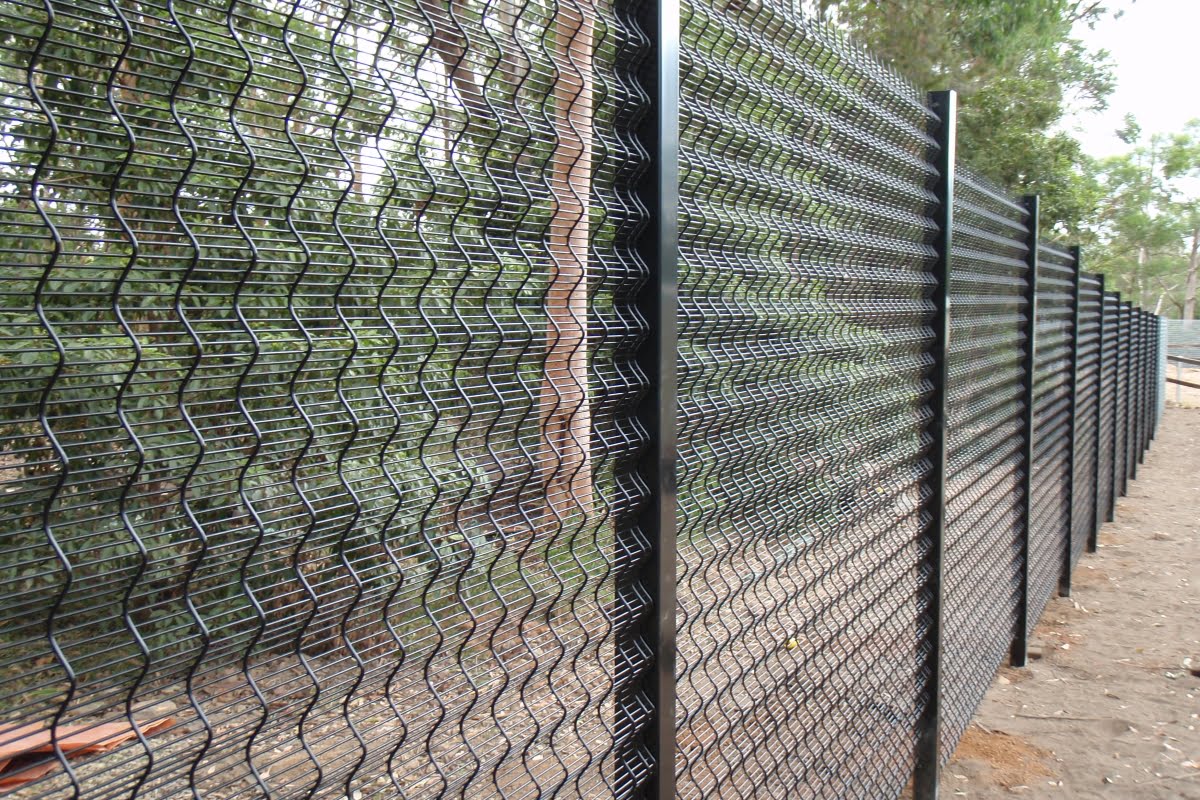

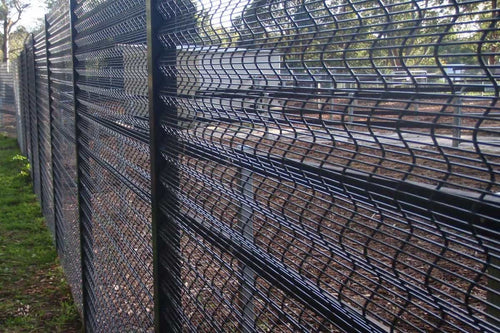

Corromesh 358: A Stylish Variant
Corromesh 358 offers the same high-security benefits in a corrugated profile. Designed to blend into urban and industrial landscapes, Corromesh is ideal where visual appeal and strength are both essential.
-
Applications
- Parks and council assets
- Bridges and rail corridors
- Utility compounds and water infrastructure
- Industrial fencing and balustrades
-
Panel Sizes
- 1800mm (H) x 2404mm (W)
- 2100mm (H) x 2404mm (W)
- 2400mm (H) x 2404mm (W)
