This guide outlines the types of fittings used in fencing and gate systems, including pipe connectors, hinges, brackets, and accessories. Understanding the right fittings for your post sizes, gate types, and site requirements ensures long-lasting, safe installations.
All fittings are generally supplied in a hot-dip galvanised finish. Select items may also be available in powder-coated finishes (e.g. black) for aesthetic matching.

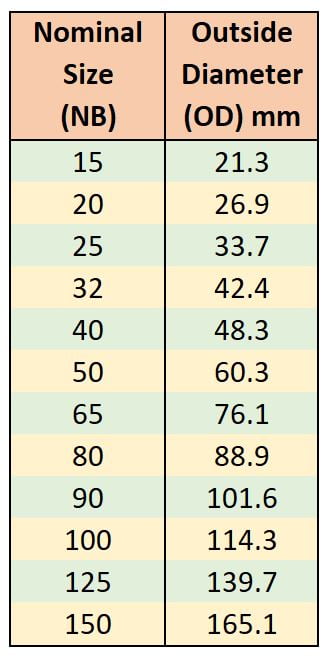

All dimensions are provided in nominal bore (NB) unless otherwise stated. A conversion table from Nominal Bore (NB) to Outside Diameter (OD) is typically used to assist with pipe compatibility.

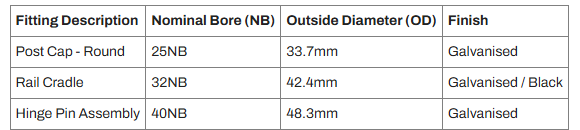

Use the table below to determine the correct fitting size based on the Nominal Bore (NB) or Outside Diameter (OD) of your fence or gate pipe. This ensures a snug fit and correct alignment of components.
Note: Always confirm OD measurements before ordering — pipe wall thickness may affect fitting compatibility.

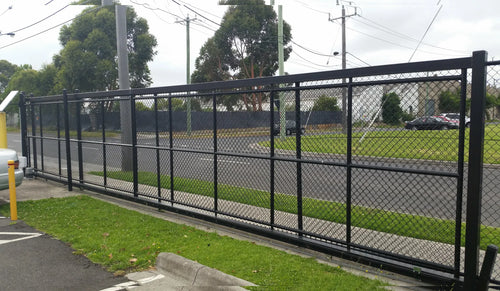

This guide provides a reference for common fittings used across chain-link, tubular, welded mesh, and gate automation systems. For uncommon sizes or non-standard applications, fittings may be fabricated or adapted using welding or bush sleeves.
