Wire

Helicoil cable is a 4.00mm diameter tensioned wire used to support chain-link fabric in rail-less fencing systems. Installed horizontally, it is strained tightly between terminal posts and secured to intermediate posts using 2.00mm lacing wire.
Typical Configuration:

• Top wire: one half diamond below the top selvedge
• Bottom wire: one half diamond above the bottom selvedge
• Middle wire: evenly spaced between top and bottom

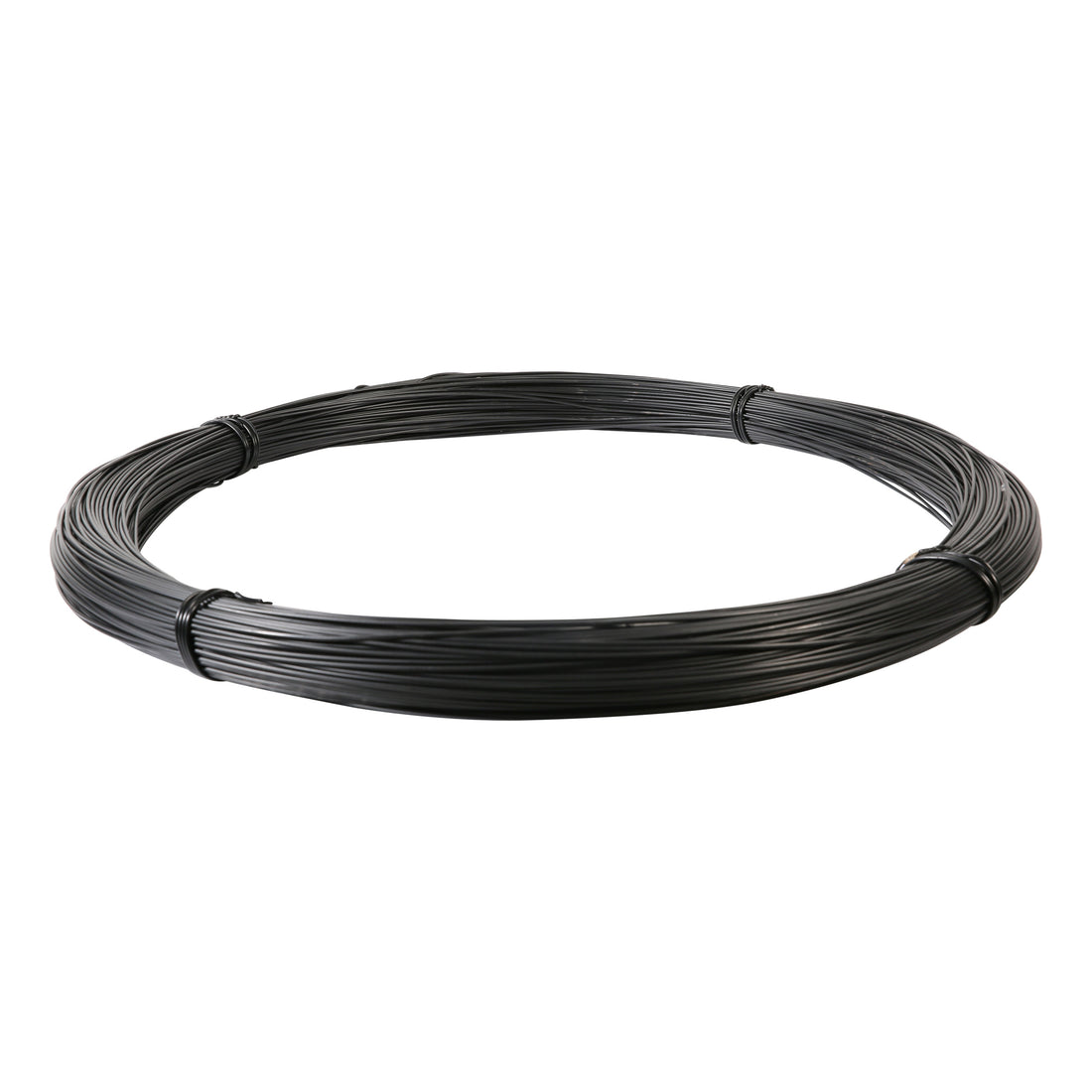

Plain wire is used as a twin double-twisted horizontal cable (3.15mm diameter). It forms a spiral tension pattern by looping alternate posts. This method creates structural tension to support chain-link mesh between posts.

Installation Tip: Never loop both strands around the same post — alternate sides for full spiral tensioning.

2.00mm lacing wire is used to fasten chain-link fabric to other components. It is flexible and strong enough for consistent tying applications.

Common Uses:

• Lacing fabric to terminal posts
• Lacing to top and bottom rails
• Securing helicoil cable to intermediate posts
• Tying barbed wire to post tops


1.57mm tie wire is a thinner gauge wire typically used for:

• Securing chain-link fabric to horizontal cables
• General light-duty tie-offs in fencing systems

Used for added perimeter security, barbed wire is typically 1.57mm high-tensile with a reverse twist and spaced barbs every 100mm. It is installed above the main fencing line and tensioned between terminal posts.

Typical Configurat

• 3 rows at 150mm vertical spacing
• Top row starts 50mm down from post top
• Mounted through punched holes or notches at post tops

Razor wire provides high-security fencing in correctional, military, and critical infrastructure environments. It is extremely difficult to climb or cut through and comes in two primary configurations:

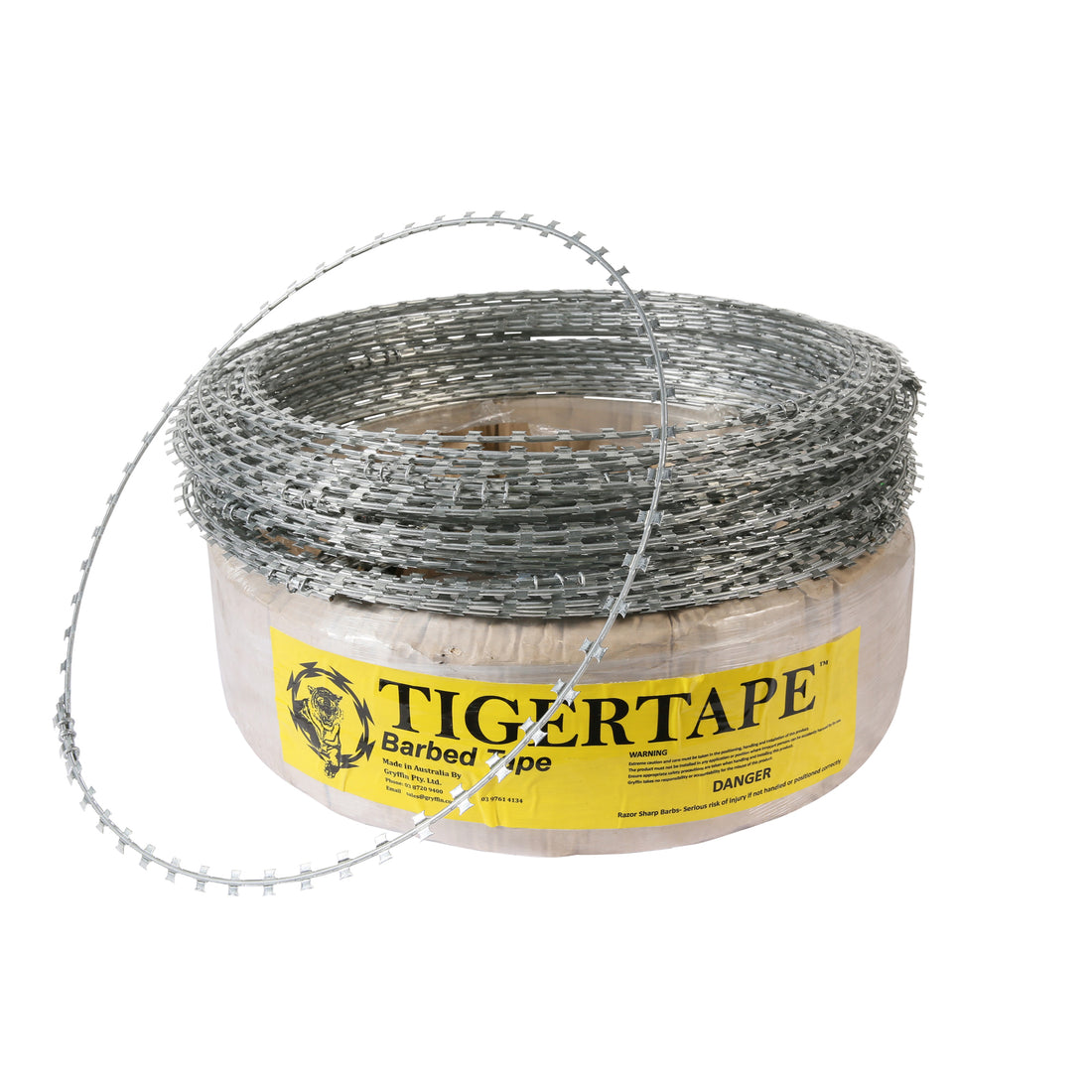

Flat Loop Razor Wire
Available sizes: 760mm (20 loops), 550mm (70 loops), 470mm (45 loops),Designed to fit on top of existing fences or walls Effective for limited-space applications. Creates an anti-climb barrier when mounted above chain-link or brick
Concertina Razor Wire

Common size: 550mm diameter (45 loops) continuous circular coils create dense, overlapping security barriers , Used for prisons, utility compounds, and secured industrial sites, Cannot be cut through using conventional tools

Netting clips are an alternative to lacing or tie wire. They are fastened using a handheld plier tool to connect mesh to cable wire at regular intervals.

Installation: Attach every 320mm (typically every 4th diamond in chain-link fabric)

• Clips fasten over both mesh and support cable
• Quick-install tool crimps clips securely
